Taking the "Center" From "Data Center"

Background

During a programming session in mid-October while listening to several "alternative media" videos concerning facts regarding this election cycle, my thoughts shifted from the embedded networked storage & computing library I was working on to the subject of censorship by social media sites. In particular Twitter's banning of those like Milo Yiannopoulos, real-time suppression of trending topics via hashtag manipulations, and Facebook's alliance with the German government with regards to the narrative on migrants from the Middle East and Northern Africa. I also had my own run-in with Facebook censoring a post in which I tried to include the flag of the German Empire.

"We [anarchists & libertarians] need systems which aren't censored", I thought, "A system with neither centralized control and storage nor ability to censor records."

As too often happens, my thinking drifted to the technicalities of such a system, in particular how to incentivize the maintenance of data and provision of services. It didn't take long for my mind to shift gears from the assembly code I was writing to forming a theoretical framework for a system which would share many things in common with my embedded networking library. The following is a simplified description of what I believe is needed.

Overview

While my introduction discussed the social media issues which sparked my thoughts, this post won't cover those aspects of the system. Instead we will examine the underlying mechanisms which could be used to make numerous applications a reality. It is imperative that the system's inner workings be open-source to ensure full transparency and to leverage the resources of interested parties in keeping the system updated and as secure as possible.

The system's core consists of hosts which may be configured to store data and/or perform computations on data. Host operators may configure almost every aspect of their systems including items such as maximum packet size, cost of storage per packet as well as per time interval, cost of providing autonomous operations, cost of providing enhanced reliability or response times, maximum processing loads, and cost per processing unit.

While hosts perform data storage and processing, clients consist of users requesting host services. Like hosts, clients may configure many aspects of their systems and what they are willing to pay per service offered.

The nature of the system allows anyone with a computer to download the application package and become a host or client. Applications for this system are limited only by one's imagination; however, the system is unfit for real-time computing and better suited to near real-time applications.

A blockchain-based system as I describe must perform the following functions:

• Data storage and retrieval
• Discovery
• Computing (data processing)
• Smart contracts
• Cryptocurrency
• Autonomous operations
• Account rating system
• User interface
• Network Interface

By now some may be thinking to themselves, "Why not just use Ethereum's contract system?"

As we will examine, the requirements for this system differ than those for Ethereum, especially in the area of what is stored within the blockchain. In its most simple application, the client portion of the system should be able to run at usable speeds on embedded devices and IoT platforms, even something as simple as an 8051 core.

To begin, a client is always a client but never host; a host may take on the role of client in addition to host depending on the type of transaction the host is engaged in. For example, a host becomes a client when negotiating for and transferring data or service requests to other hosts even though the data belongs to other clients.

Data Storage & Retrieval

Data segments (or files if you prefer that term) are broken into small packets, the size of which may be set by each client and host. Each packet has an associated cryptographic hash, and each data segment also has a hash. Hashing ensures the integrity of each packet and segment may be checked; packets and segments showing integrity disparities may be removed (voided) from the system entirely with removal reflected in the blockchain. Rather than storing raw data in the blockchain, these hashes are stored while packets are routed to hosts whose packet acceptance size meets or exceeds that of the packets. Packets may also be encrypted on the client system prior to hashing and transmission if the user has configured the system to do so; it is advisable that this be the default operation along with the use of symmetric encryption. This ensures data privacy during transmission and storage.

Normal segments and packets are not meant to exist in perpetuity and thus contain time-to-live (TTL) tags specifying the lifetime of the segment or packet. Hosts may accept segments and packets with a TTL value of zero; these are assumed to be data which is expected to exist in perpetuity. To prevent hosts from being overwhelmed with junk segments and packets with a TTL of zero, it is recommended that hosts accept such data only from trusted clients with appropriate credentials.

Packets are identified by a 128-bit Universal Packet ID (UPID) which includes a packet's time of creation measured in hundreds of nanoseconds from the year 2000. UPIDs cannot contain any information which, if used alone or in conjunction with other information, may identify the system generating the packet. Bits 127 and 126 of the UPID are reserved for UPID extension and UPID voiding, leaving 126 bits for the UPID itself. In addition to a UPID, each packet includes a 256-bit Universal Segment ID (USID) generated in the same fashion as a UPID, with bits 255 and 254 providing a USID extension and voiding mechanism.

To provide hosts with a method of identifying clients who own data stored on hosts, a simple response system is implemented. Upon receipt and acceptance of client data, the host generates a 128-bit UUID and transmits it along with the USID/UPID combination back to the client as a confirmation of data acceptance.

Computing

Separate from the data storage and retrieval mechanism is the computing platform.

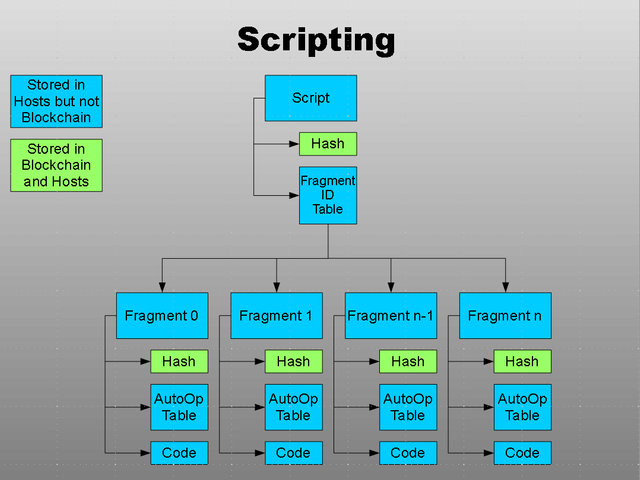

Scripts are the method clients who wish to perform computations utilize the system, and are composed of individual fragments. A fragment consists of one or more algorithms which will run on a single host. Fragments permit a single script to be executed across multiple hosts. Like data segments and packets, scripts and fragments are not stored within the blockchain but their hashes and IDs are. The scripting language is algorithm-based and possible "exploits" like filling hosts with scripts containing nothing but endless loops are discouraged via the pay-per-compute model.

The computational capability of hosts is rated using Processing Units (PU), a platform-independent standard measurement of computing power available to perform a set of operations. Temporal and memory complexities are the two metrics by which resource consumption may be measured on digital systems, the former serving as the basis for further computations of resource usage such as electrical power.

The number of PUs available on a single host is calculated by performing standard algorithms on said host and rating each using these two metrics.

Smart Contracts

Smart contracts, referred to as Service Agreements, form the basis of the system's method to incentivize users to act as storage and/or processing nodes; while smart contracts currently exist, this system requires a very lightweight and simple implementation. The Service Agreement system consists of nothing more than triggers defining which conditions must be met for hosts to receive payment. There is no need for a wide range of triggers or methods to provide custom triggers. Numerous triggers are defined including the following examples:

• Packet size
• Packet retention time
• Autonomous operations
• Computing complexity
• Data recall
• Algorithm completion

As with segments, packets, scripts, and fragments, service agreements are identified within the system by IDs and hashes.

Cryptocurrency

This subject need not be covered in-depth due to the existence of numerous cryptocurrencies; however, it is important that the number of units which can exist is limited to avoid inflation. Bitcoin is a perfect example. Other than timestamps included in various IDs, account addresses are the only other information which could conceivably be used to identify a client or host.

The maintenance of the blockchain is the goal, and cryptocurrency provides one incentive for miners to perform such maintenance. The blockchain consists solely of service agreements, packet/segment IDs, script/fragment IDs, and their associated hashes as well as node ratings.

A three-phase escrow is also implemented within the blockchain. Phase I is the transfer of currency from the client's available account balance and into their escrow pool upon a host accepting a service agreement and providing an acknowledgement to the client. Phase II is the transfer of the escrow amount into the global escrow pool upon transfer of stored data or algorithm results. Finally Phase III transfers currency into the host account once the client has verified data integrity or the results of the algorithm. As currency moves from Phase I to Phase III it becomes more difficult for the client to recover it and easier for the host to claim it should dispute arise.

Autonomous Operations

The capability for hosts to perform various operations under specific conditions is integral to the effectiveness of the system. Detection of any of the following conditions, as well as others, on a host may trigger autonomous operations:

• Packet age
• Date and time
• Hash error
• Loss of communication with client

Upon the completion of an autonomous operation and verification by miners, the payout determined by the service agreement is transferred into the host's account.

Account Rating

Because accounts (blockchain "wallet" addresses) are required to utilize the system, they are used in the account rating system that assigns an integer value to each account. Account rating allows both automatic and manual rating of clients and hosts and is the feedback mechanism by which those using the system are able to asses the trustworthiness of anyone else in the system. Account ratings are kept in the blockchain and serve as a history of account trustworthiness. Automatic rating is one function performed by miners; segments and scripts are periodically sent to hosts, generally selected at random, and miners check the results against expected results. Automatic rating also occurs when a client flags a service agreements failure or detects a discrepancy in segments or script results and flags the transaction as invalid. In this case miners act as arbiters, determining whether the client or host is at fault and adjusting ratings accordingly. Rating also determines the amount which a client or host is impacted by negative adjustments as well as the impact their "vote" has when rating others.

User Interface

The specifics of the user interface are outside the scope of this post and largely outside the scope of the system as well; the system is primarily a VM and API. However, users should have the ability to specify almost every operational aspect of their client or host; cost parameters, service agreement acceptance parameters, algorithm black and whitelists, rating thresholds, memory constraints, and so on.

Network Interface

While the particulars of each network type are out of the scope of this post, end even the system itself, it is important that methods of accessing and utilizing a network be as secure and anonymous as possible. The Tor protocol is a good example. It is also important that the network is fully abstracted to average client and average host, yet permits advanced clients and hosts to tailor network features to the extent such modifications do not create security and anonymity issues.
